SS Countersunk Head Rivet Nuts Vented Flat Head Chemical Resistant

Name: SS Countersunk Head Rivet Nuts Vented Flat Head Chemical Resistant
Brand: Runtai
Price: 1 USD

China SS Countersunk Head Rivet Nuts Vented Flat Head Chemical Resistant wholesale

Brand Name : Runtai

Model Number : Rivet Nuts

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5 Ton/days

Delivery Time : 14-21 days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel Stainless Steel Red Copper Aluminum Alloy For Choose

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : Zinc plated, nickel plated, black phosphates for choose

Products Name : Stainless Steel Countersunk Head Ribbed Rivet Nuts

Port : Shanghai

Contact Now

Stainless Steel Countersunk Head Ribbed Rivet Nuts Stainless Steel Vented Flat Head Knurling Rivet Nuts

Products Descriptions

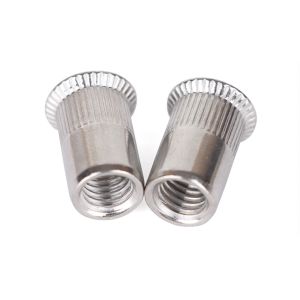

These rivet are vented flat head&countersunk headdrilled through the shaft to vent fluids and gases trapped under the rivet nut. The most corrosion resistant twist-resistant rivet nuts we offer, these stand up to chemicals. A ribbed body holds the nut in place so it won't turn when tightening a screw. Also known as blind inserts, they can be installed when you have access to only one side of the material. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

Products Specifications

Material	Stainless Steel
Thread
Size	M6
Pitch	1 mm
Type	Metric
Spacing	Coarse
Fit	Class 6H
Direction	Right Hand
Drill Bit Size	9 mm
Drill Bit Decimal Size Equivalent	9 mm
For Material Thickness	0.5 to 3 mm
Body
Type	Ribbed
Diameter	9 mm
Length	14 mm
Installed Length	10 mm
Flange
Diameter	12 mm
Thickness	1.5 mm
Nut Type	Rivet
End Type	Open
For Use In	Metal
RoHS	Compliant

More Products Pictures

SS Countersunk Head Rivet Nuts Vented Flat Head Chemical Resistant
